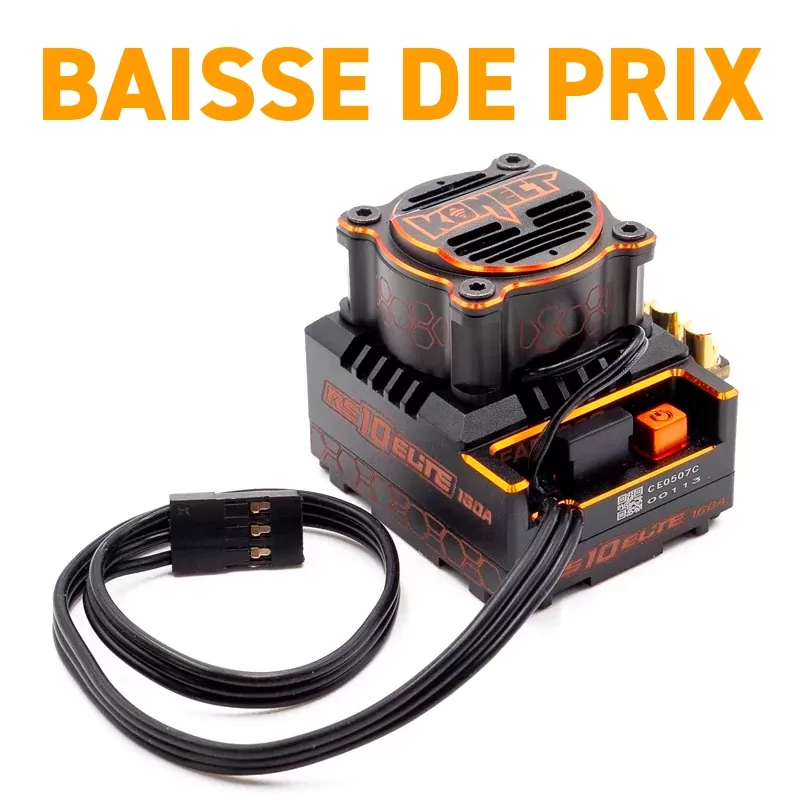

1/10 Konect RS10 Elite racing ESC - 160 Amp

Controleur Konect 1/10 RS10 Elite 160 Amp
search
  • Controleur Konect 1/10 RS10 Elite 160 Amp
  • 1/10 Konect RS10 Elite racing ESC - 160 Amp
  • 1/10 Konect RS10 Elite racing ESC - 160 Amp
  • 1/10 Konect RS10 Elite racing ESC - 160 Amp
  • 1/10 Konect RS10 Elite racing ESC - 160 Amp
KN-RS10ELITE
ean13: 3700624559256
€149.90
Tax included
Quantity

In stock qty = 50, id = 5166

The KN‑RS10 ELiTE is a high-end brushless ESC for 1/10th competition models.

To make it easier to get started, 3 preset setup modes are available: Custom Blinky (for STOCK competitions that require zero timing), 1/10 Off-Road (1/10 buggy / truggy / monster truck) and 1/10 On-Road (touring car, F1, pan car…).

The ESC has 36 adjustable settings to customize and adapt motor performance to your driving style.  Setup parameters can be imported and exported, making it easier for drivers to share settings.

Supports up to 64 degrees of Super Boost and Turbo Timing.

Multiple protection features: low-voltage protection, ESC protection and motor overheat protection.

A high-performance BEC is built in, delivering 6 A continuous current (up to 8 A peak) and an adjustable voltage from 6 V to 7.4 V.  This adjustable voltage allows you to use any servo on the market.

The data logging function lets you record operating data (for example, the maximum ESC and motor temperatures and maximum motor speed) and review it after a driving session using the LCD programming box.

The ESC's intelligent shutdown function can be enabled to turn off the ESC remotely using the transmitter.



Type Items Configuration Options
General Settings Running Mode Fwd/Brk Fwd/Rev/Brk Fwd/Rev
General Settings Max. Reverse Force 25%-100% (Adjust Step 1%)
General Settings Cutoff Voltage Disable Auto (3.5V/cell) Customized 4.0-7.4V
General Settings ESC Thermal Protection Disable Enable (Adjust Step 0.1V)
General Settings Motor Thermal Protection Disable Enable
General Settings BEC Voltage 6.0V 7.4V
General Settings Remote Off Disable Enable
General Settings Sensor Mode Full Sensored Hybrid
General Settings Motor Rotation CCW CW
General Settings Phase-AC Swap Disable Enable
Throttle Control Punch Sw Point 30%-70% (Adjust Step 1%)
Throttle Control Punch Rate1 Start 1-30 (Adjust Step 1)
Throttle Control Punch Rate2 End 1-30 (Adjust Step 1)
Throttle Control Throttle Curve Linear Customized
Throttle Control Neutral Range 6% 8% 10%
Throttle Control Init Throttle Force 1%-15% (Adjust Step 1%)
Throttle Control Coast 0%-30% (Adjust Step 1%)
Throttle Control Softening Value 0-30° (Adjust Step 1°)
Throttle Control Softening Range 0%-75% (Adjust Step 1%)
Throttle Control PWM Drive Freq 1K 2K 4K 8K 16K
Brake Settings Brake Control Slowly Heavy
Brake Settings Drag Brake 0%-100% (Adjust Step 1%)
Brake Settings Max. Brake Force 0%-150% (Adjust Step 1%)
Brake Settings Init Brake Force 0%-50% (Adjust Step 1%) Drag Brake
Brake Settings Brake Add Rate 0-20 (Adjust Step 1)
Brake Settings Brake Frequency 0.5K 1K 2K
Timing Settings Boost Timing 0-64° (Adjust Step 1°)
Timing Settings Boost Start RPM 1K-20K (Adjust Step 1K)
Timing Settings Boost End RPM 8K-50K (Adjust Step 1K)
Timing Settings Boost Control RPM Automatic
Timing Settings Turbo Timing 0-64° (Adjust Step 1°)
Timing Settings Turbo Delay 0-1s (Adjust Step 0.05s) Instant
Timing Settings Turbo Add Rate 0-64° (Adjust Step 1deg/0.1s) Instant
Timing Settings Turbo Sub Rate 0-64° (Adjust Step 1deg/0.1s) Instant
Send us your question

Be the first to ask a question about this product!

Consult, revoke or modify data

Question about the product

* Required fields

ESC

Courant continu 160 Amp
Type de moteur Moteur Brushless avec ou sans capteur
Courant de crête 1100 Amp
Sortie BEC Régulation interrupteur 6V/7,4V . courant 6A/8A Max
Cellules LiPo / NiMH Lipo 2S
Méthode de programmation Carte de programmation
Application Buggy électrique 1/10 2WD/4WD et voiture de piste de compétition
Dimensions 38 x 37.8 x 36mm
Poids 60 g
