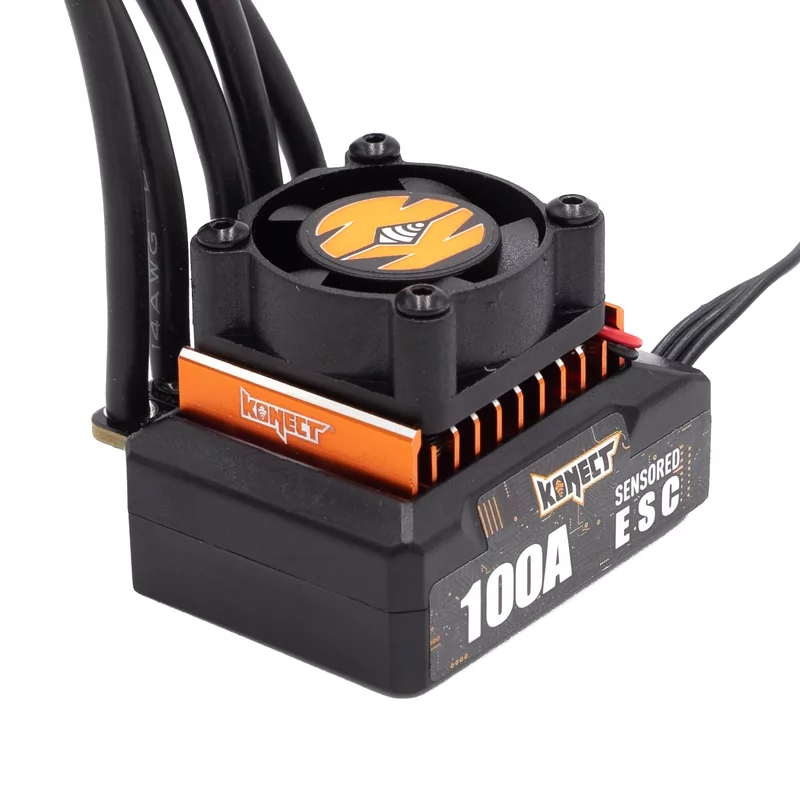

1/10 Konect Elite 100 Amp 2S racing ESC with program card

Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
search
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
  • Controleur 1/10eme Elite Konet 100 amp 2S avec carte de programmation
KN-ELITE-ESC100
ean13: 3700624560122
€59.90
Tax included
Quantity

In stock qty = 116, id = 5296

Specifications


• 32-bit processor
• Low-resistance FET (field-effect transistor)
Continuous current

Forward / Brake / Reverse: Yes (Factory setting: Forward / Brake)

PROGRAMMING MANUAL

Low-voltage cutoff: This function is primarily intended to prevent lithium batteries from being over-discharged.
When using a lithium battery pack, set an appropriate low-voltage protection value for your application.
CAUTION: Never use the default “No Protection” setting with lithium batteries!

Item (1) (2) (3) (4) (5) (6) (7) (8) (9)
1. Low Voltage Cut-off 3.1V Slow 2.9V Slow 2.7V Slow Disable 3.4V Slow 3.1V Stop 2.9V Stop 2.7V Stop 3.4V Stop
2. Start Mode (Punch) Level 3 Level 1 Level 6 Level 2 Level 4 Level 5
3. Max. Brake Force 50% 25% 75% 100% Disable
4. Max. Reverse Force 25% 50% 75% 100%
5. Neutral Range 9% 6% 12% 1% 3%
6. Motor Overheat Protection 120°C Stop 135°C Stop 150°C Stop 120°C Slow 135°C Slow 150°C Slow Disable
7. ESC Overheat Protection 105°C Stop 95°C Stop 105°C Slow 95°C Slow Disable
8. Running Mode Forward/
Reverse/
Brake		 Forward/
Brake		 Forward/
Reverse
9. Drag Brake Force 0% 5% 10% 20% 30%
10. Boost Timing 0° – 60°
11. Turbo Timing 0° – 60°
12. PWM Frequency 8K 2K 4K 12K 16K 24K 32K 48K
13. Brake PWM Frequency 1KHz 400Hz 600Hz 800Hz 2K 4K
14. Motor Rotation CCW CW
15. BEC Voltage 6V 7.4V
16. Model Drift Racing


The items underlined above indicate the factory default settings.
Options 1–9 apply to sensorless brushless ESCs,
while options 1–16 apply to sensored brushless ESCs.

Send us your question

Be the first to ask a question about this product!

Consult, revoke or modify data

Question about the product

* Required fields

8.XMID.COMBO-RACE

2WD 1/10 Xmid buggy kit combo race version

Kit Buggy 1/10ème 2wd XMid version combo Race
Kit Buggy 1/10ème 2wd XMid version combo Race
Quick view
Price €269.90
  • Pack

Dimensions

Longueur 44.5 mm
Largeur 39.5 mm
Hauteur 31 mm
Poids total 73 g

ESC

Courant continu 100 Amp
Type de moteur Moteur brushless sensored 380 / 390 / 540
Courant de crête 180 Amp
Sortie BEC 6V/6A
Cellules LiPo / NiMH 2S - 2S HV
Limite du moteur ≥8.5T
